New Mapping Tool to Predict Costs of Coastal Floods

Researchers from UK’s National Oceanography Centre (NOC) and the University of Liverpool have developed a visualisation tool to predict the economic damage caused by coastal flooding around estuaries.

The method combines using flood models and land use maps. The tool then relates the model output in terms of how many brick layers the flood water will reach, giving possible mitigation options for the different water levels.
 Using the tool, researchers found that the economic damage of coastal flooding increased much more than expected with the size of the flood.

Thomas Prime, from the University of Liverpool, said “By showing how high the flood water could rise in terms of brick courses, and providing a corresponding estimate of economic damage, these new maps can help residents see the impact of low probability flooding scenarios.”

Dr Jenny Brown, from the National Oceanography Centre, said:

“This research is an example of the NOC’s commitment to developing transferable science that benefits coastal communities through the provision of evidence in support of flood risk management.

This new visual representation of flood hazard identifies areas at risk, allowing improved adaptive management – increasing community resilience to climate change and rising sea levels. This work leverages the expertise in marine hazards from across NOC, and our external collaborators, to assess flood risk to a coastal community from extreme waves, water levels and projected rises in sea level.”

Combining High Impact Flooding Scenarios With Land Use Maps

Combining a model for flood inundation with one that simulates the effect of waves means that it is possible to estimate how likely it is that sea defences will be ‘over-topped’ in a changing climate. This threshold is based on a plausible amount of sea-level rise by 2100. The highest recorded river level was also added to this model to give an overall ‘worst-case scenario’ of flooding for communities around estuaries.

Cost of Flood Damage

An estimate of the economic damage of the flood is obtained by relating the water depth predicted by this method with the land use maps. This information is then fed into ‘depth-damage curves’, which are used to give a value for the economic damage of flooding for a given water depth and land use type. For example, arable land under five meters of water or residential property under three meters.

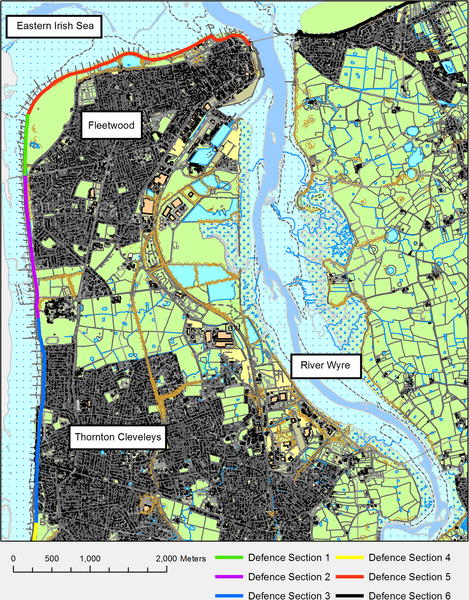

Image credit:
Image credit: National Oceanography Centre (NOC)

More about the study can be found here.
